6.08
6.08
L 400 x W 300 x D 100 mm
Built-in dimensions L 386 x W 254 x D 85 mm
Outside Mounting provision provided on enclosure
Heavy Duty Enclosure for Bus Bars, and Industrial Plugs and Sockets
Stainless Steel (SS304) Screws
Colors available with MOQ 1000+

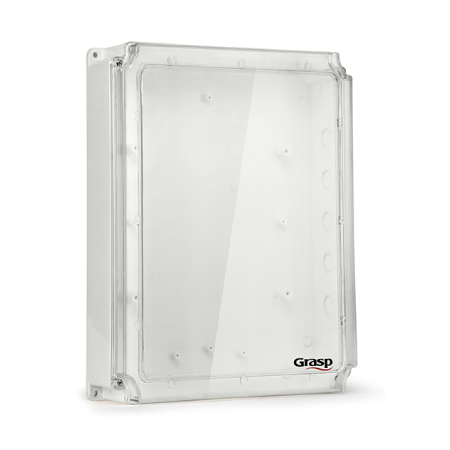

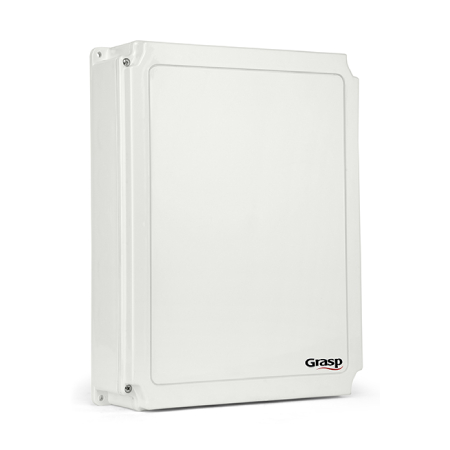

Material: ABS / ABS with Transparent PC Cover
Preferred for Solar Applications like AJBs, ACDBs, and DCDBs
- SKU - 6.08
35% Sitewide Discount on List Prices!
Contact us for Bulk Discounts.
Product Description
L 400 x W 300 x D 100 mm
Built-in dimensions L 386 x W 254 x D 85 mm
Outside Mounting provision provided on enclosure
Heavy Duty Enclosure for Bus Bars, and Industrial Plugs and Sockets
Stainless Steel (SS304) Screws
Colors available with MOQ 1000+
Material: ABS / ABS with Transparent PC Cover
Preferred for Solar Applications like AJBs, ACDBs, and DCDBs
| Dimension | |
| Length | 400 mm |
| Width | 300 mm |
| Depth | 100 mm |
| Raw Material | |
| Enclosure | ABS |
| Sealing | Extruded Silicon |
| Weight | 1.706 Kg |
| Engineering Properties | |
| Ingress Protection | IP65 |
| Weather Proof |
