2.04

L 420 x W 320 x D 138 mm
Built-in dimensions L 372 x W 272 x D 120 mm

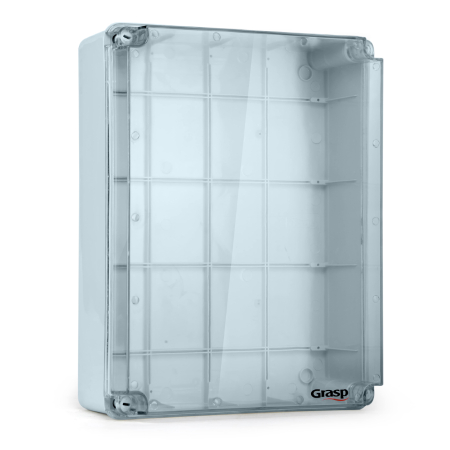

With Opaque or Transparent Lid
Box walls without knockouts
External brackets for wall fixing included
Colour: Grey – RAL 7035
Material: ABS / PC (polycarbonate)
DIN rails & Mounting Plates available (ordered separately)

35% Sitewide Discount on List Prices!

Contact us for Bulk Discounts.

Product Description

Built-in dimensions L 372 x W 272 x D 120 mm
for installation equipment on DIN rails or mounting plates (order separately)
with opaque or transparent lid
sealable
box walls without knockouts
external brackets for wall fixing included
colour: grey, RAL 7035
material: ABS / PC (polycarbonate)

Dimension
Length	420 mm
Width	320 mm
Depth	138 mm
Raw Material
Enclosure	ABS/Polycarbonate
Sealing	Extruded Silicon
Weight	2.048 Kg
Engineering Properties
Ingress Protection	IP65/67
Fire Retardant	UL94V0
Weather Proof	Weather Proof for outside mounting
Impact Strength	IK08 (5 Joule)
Glow Wire Test (GWIT)	850° C
Ultraviolet Protection	UV Stabilized
Environmental Attributes & Ambient Condition
Environmental Protection	RoHS
Halogen Free
Ambient Temperature	– 25° C to 80° C
