2.01

2.01

L 180 x W 180 x D 138 mm
Built-in dimensions L 132 x W 132 x D 120 mm

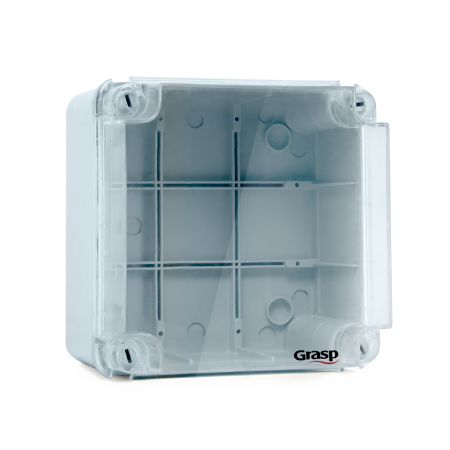

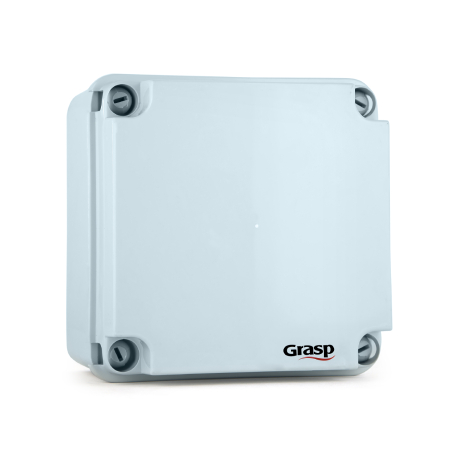

With Opaque or Transparent Lid
Box walls without knockouts
External brackets for wall fixing included
Colour: Grey – RAL 7035
Material: ABS / PC (polycarbonate)
DIN rails & Mounting Plates available (ordered separately)

  • SKU - 2.01
Clear

35% Sitewide Discount on List Prices!

Contact us for Bulk Discounts.

Product Description

  • Description
  • Technical Data
  • Drawings
  • Accessories
  • Technical Documents + Certifications
  • Application Pictures

Built-in dimensions L 132 x W 132 x D 120 mm
for installation equipment on DIN rails or mounting plates (order separately)
with opaque or transparent lid
sealable
box walls without knockouts
external brackets for wall fixing included
colour: grey, RAL 7035
material: ABS / PC (polycarbonate)



Dimension
Length180 mm
Width180 mm
Depth138 mm
Raw Material
EnclosureABS/Polycarbonate
SealingExtruded Silicon
Weight0.648 Kg
Engineering Properties
Ingress ProtectionIP65/67
Fire RetardantUL94V0
Weather ProofWeather Proof for outside mounting
Impact StrengthIK08 (5 Joule)
Glow Wire Test GWIT850° C
Ultraviolet ProtectionUV Stabilized
Environmental Attributes & Ambient Condition
Environmental ProtectionRoHS
Halogen Free
Ambient Temperature– 25° C to 80° C

Drawing

Bus Bar 4+2

Bus Bar 8+2

Carry Handle Flush

Carry Handle Straight

Hinge (Big)

Hinge (Biggest)

Coupler - 25 mm

Coupler - 38 mm

Antivibration Terminal - 25 Sq. mm

Stud Type Teminal - 32A

Stud Type Teminal - 63A

Fixed Window (75x75)

Fixed Window (90x90)

Ventilator - (40 mm)

Ventilator - (66 mm)

Lock & Key

Carry Handle (Straight )

Carry Handle (Flush )

Mounting Clamp (MS)

Mounting Clamp (SS)

Pole Mounting with Clamp

Mounting Plate

Din Rail
