2.00A

2.00A

L 180 x W 130 x D 100 mm
Built-in dimensions L 148 x W 98 x D 90 mm

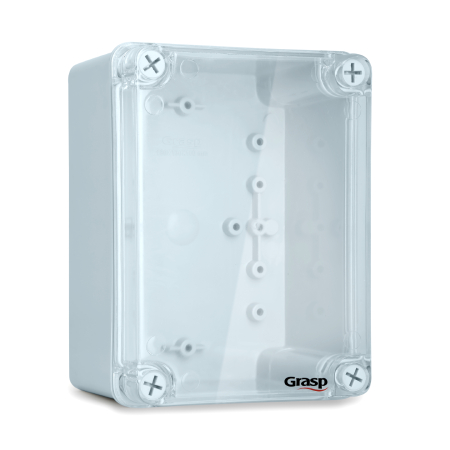

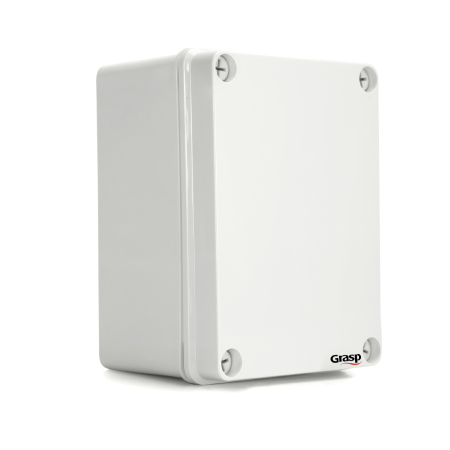

With Opaque or Transparent Lid
Box walls without knockouts
External brackets for wall fixing included
Colour: Grey – RAL 7035
Material: ABS / PC (polycarbonate)
DIN rails & Mounting Plates available (ordered separately)

  • SKU - 2.00A
Clear

35% Sitewide Discount on List Prices!

Contact us for Bulk Discounts.

Product Description

  • Description
  • Technical Data
  • Drawings
  • Accessories
  • Technical Documents + Certifications
  • Application Pictures

Built-in dimensions L 148 x W 98 x D 90 mm
Plain wall
Polymer Screw
Reinforced design for High Impact Strength
Available with RAL 7035 & Transparent PC Cover
Colors available with MOQ 1000+
for installation equipment on DIN rails or mounting plates (order separately)
external brackets for wall fixing included
material: ABS / PC (polycarbonate)



Dimension
Length180 mm
Width130 mm
Depth100 mm
Raw Material
EnclosureABS/Polycarbonate
SealingExtruded Silicon
Weight0.462 Kg
Engineering Properties
Ingress ProtectionIP65/67
Fire RetardantUL94V0
Weather ProofWeather Proof for outside mounting
Impact StrengthIK08 (5 Joule)
Glow Wire Test GWIT850° C
Ultraviolet ProtectionUV Stabilized
Environmental Attributes & Ambient Condition
Environmental ProtectionRoHS
Halogen Free
Ambient Temperature– 25° C to 80° C

Drawing

Bus Bar 4+2

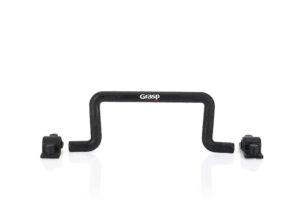

Carry Handle Flush

Carry Handle Straight

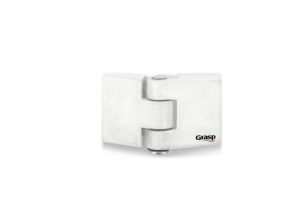

Hinge (Small)

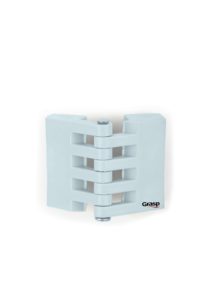

Hinge (Big)

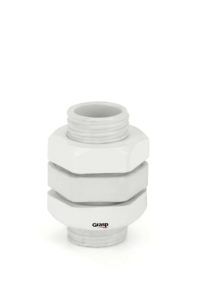

Coupler - 25 mm

Coupler - 38 mm

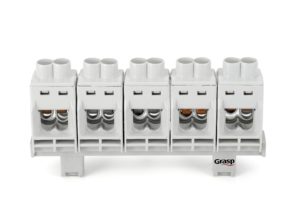

Antivibration Terminal - 25 Sq. mm

Stud Type Teminal - 32A

Stud Type Teminal - 63A

Fixed Window (75x75)

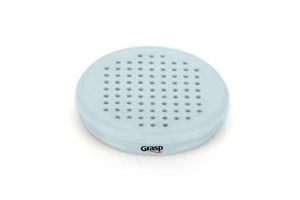

Ventilator - (40 mm)

Ventilator - (66 mm)

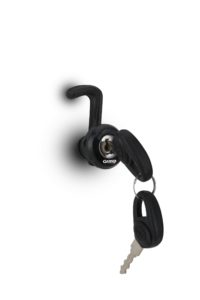

Lock & Key

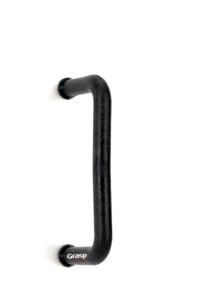

Carry Handle (Straight )

Carry Handle (Flush )

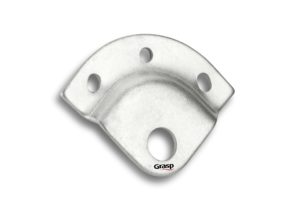

Mounting Clamp (MS)

Mounting Clamp (SS)

Pole Mounting with Clamp

Mounting Plate

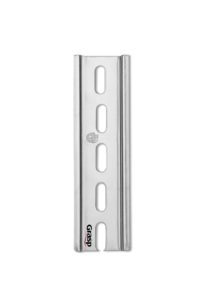

Din Rail
